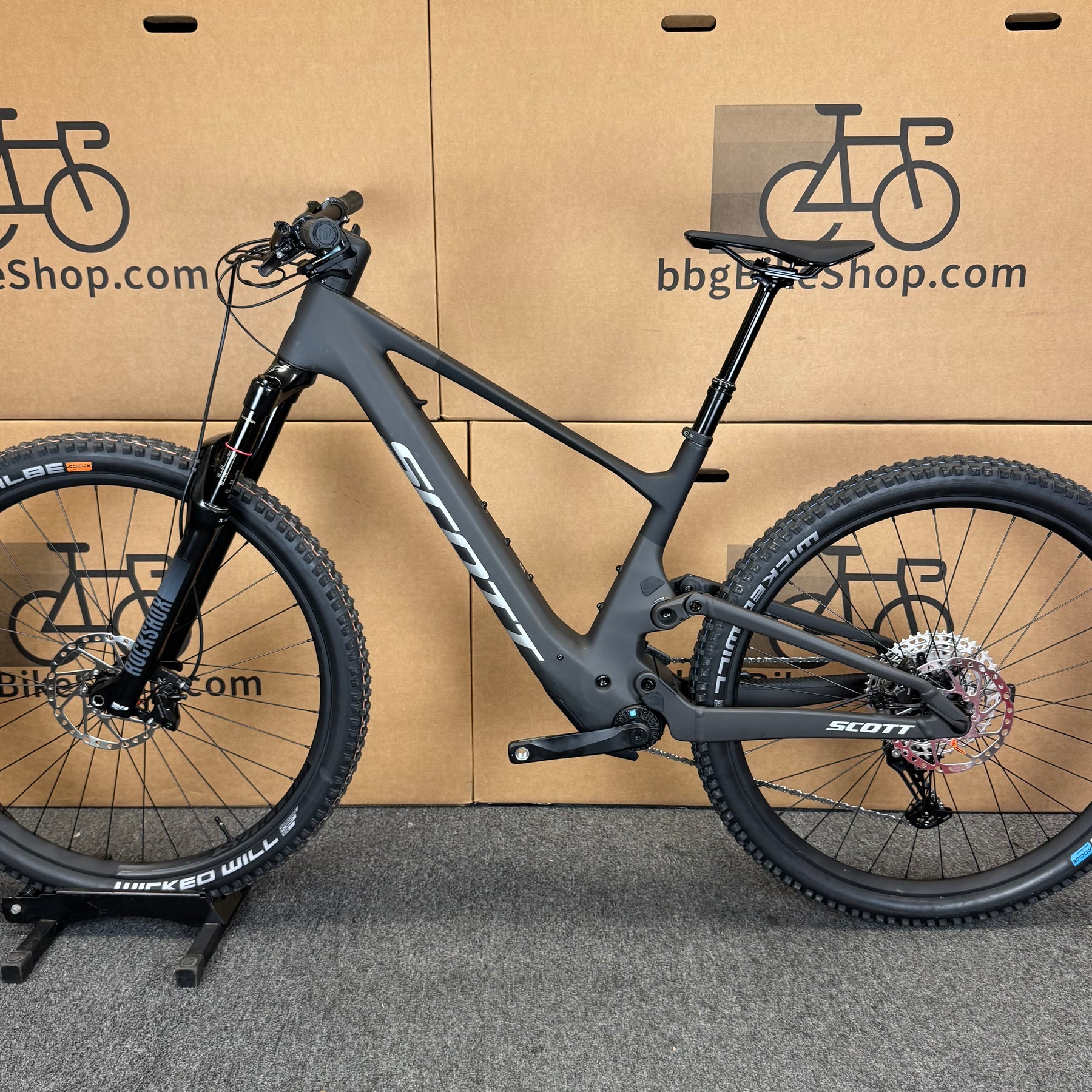

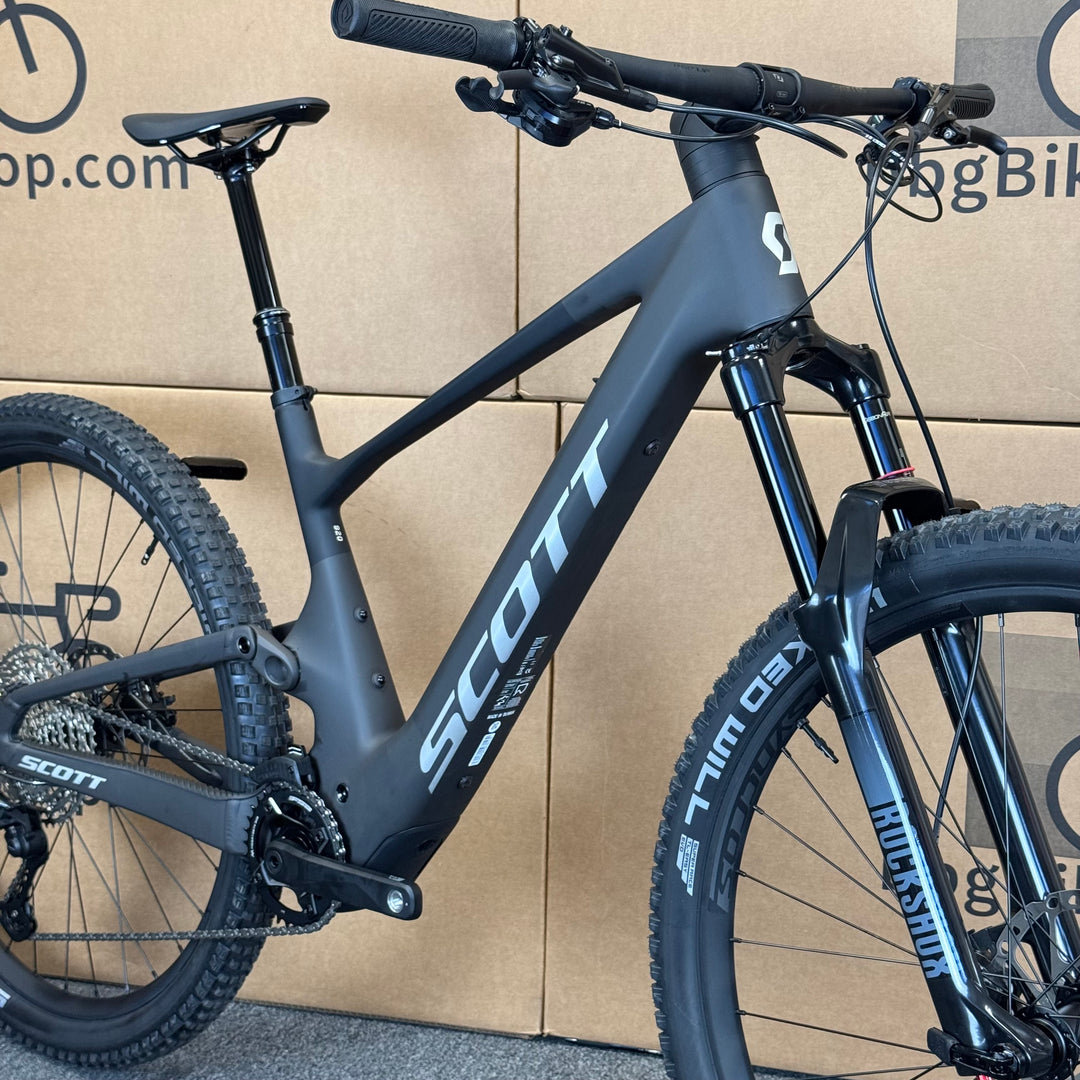

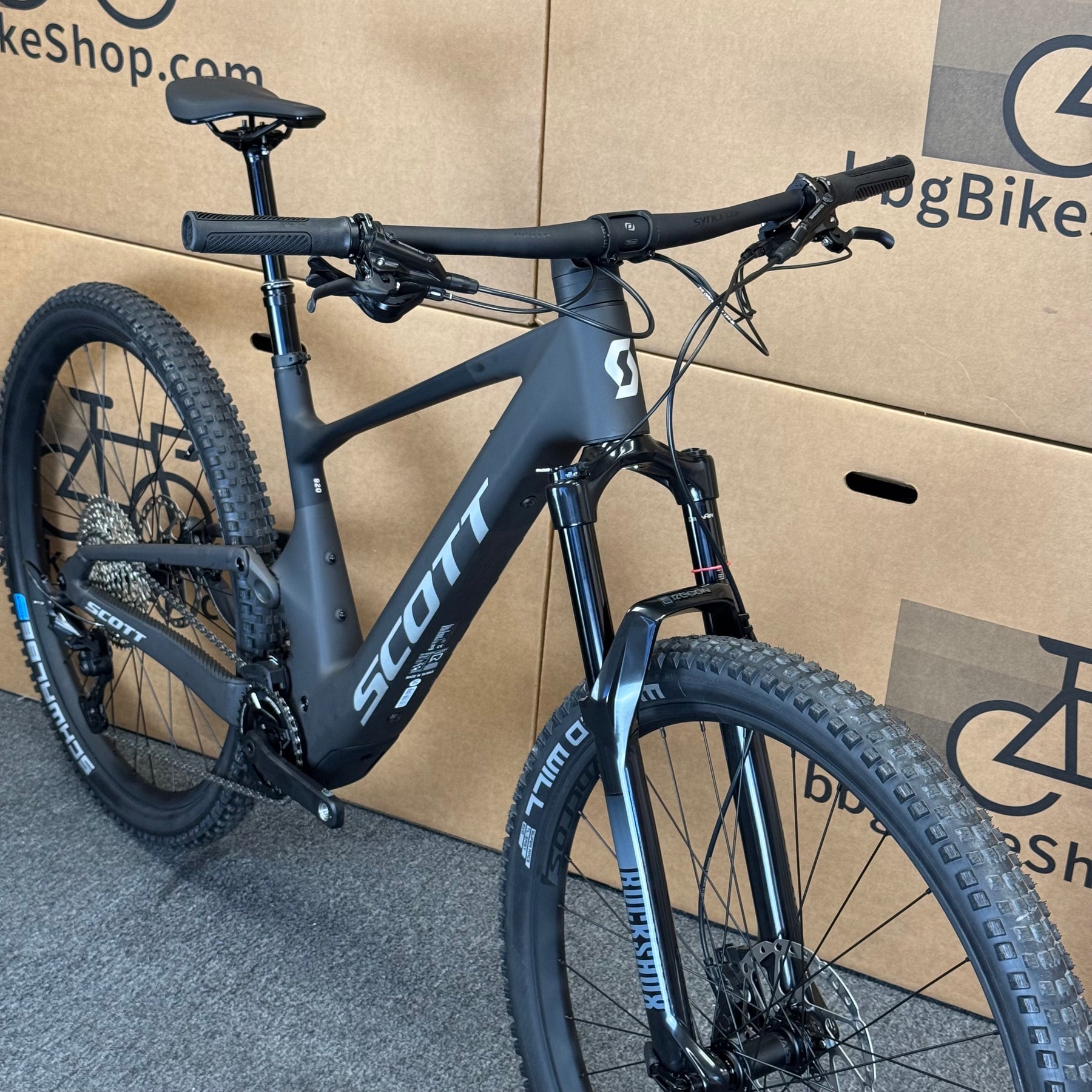

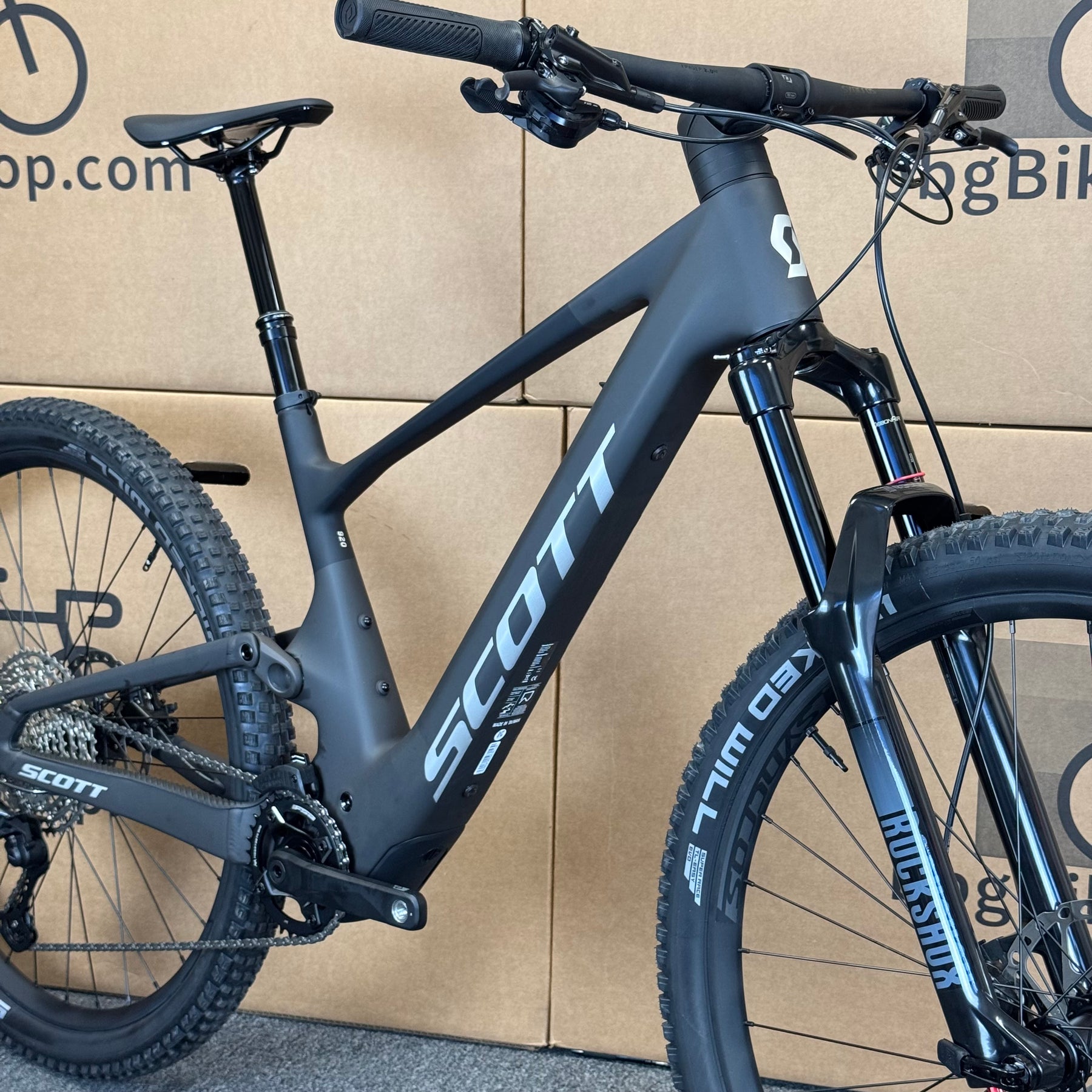

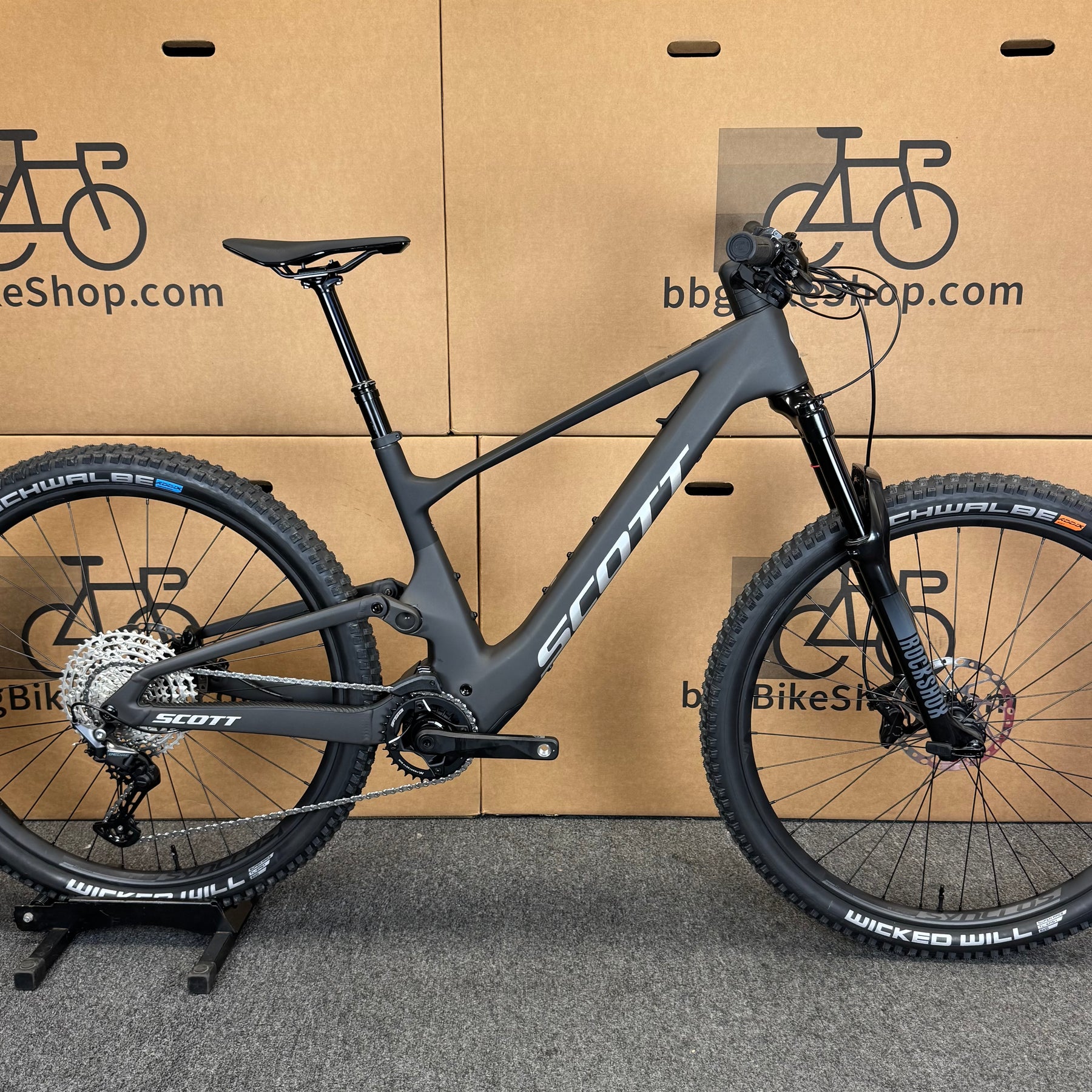

Name: 2025 Scott Lumen 920, E-Bike Mountain Carbon Fiber E-MTB
Brand: Scott
Price: 5099.0 USD
Availability: InStock

2025 Scott Lumen 920, E-Bike Mountain Carbon Fiber E-MTB

$5,999.99 $5,099.00 Save $900.99

Shipping calculated at checkout.

New Bike

Size

Low stock - 1 item left
Inventory on the way

Specification	Detail

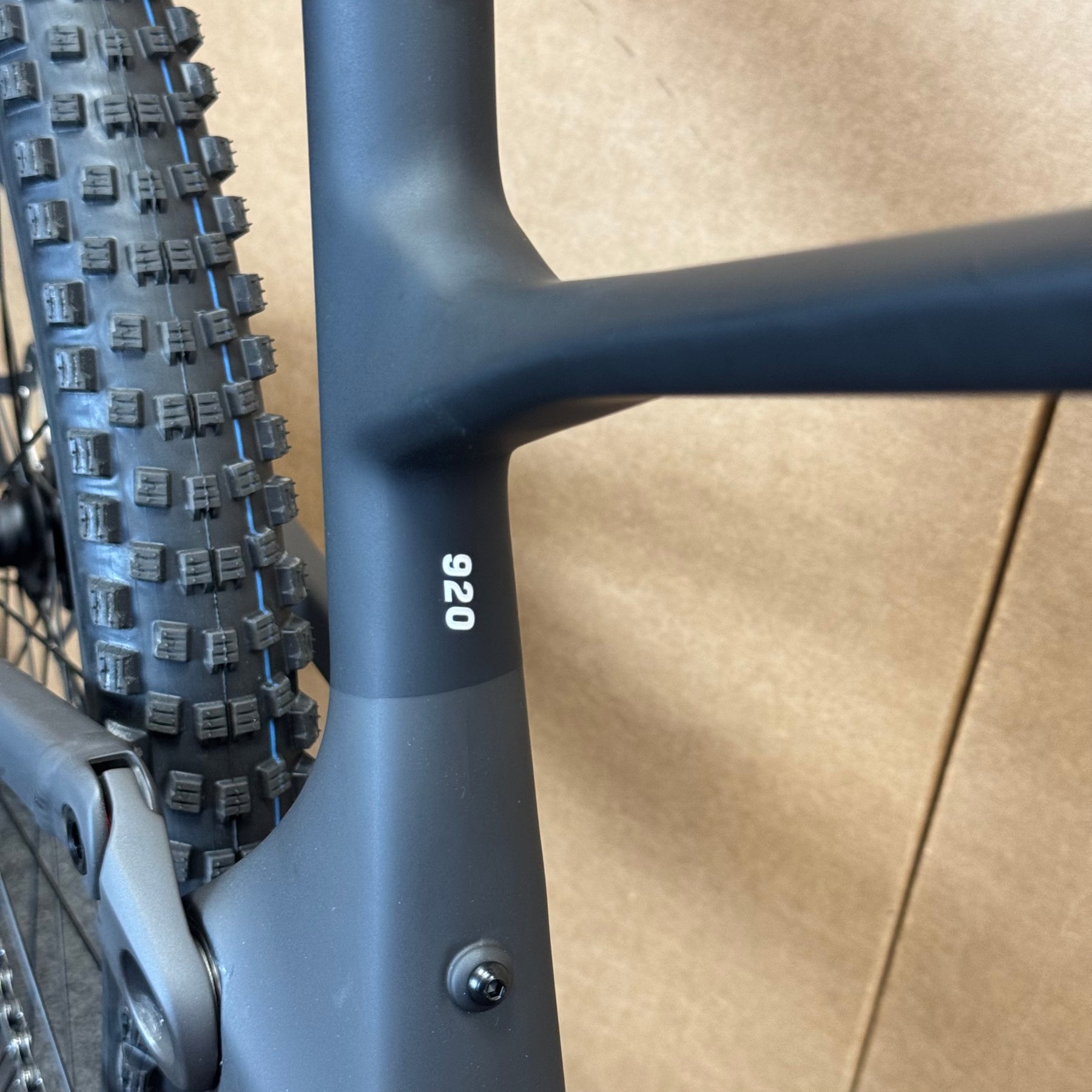

Frame	Carbon HMF Main Frame / Alloy SST-CST Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Travel	Front: 140mm / Rear: 130mm

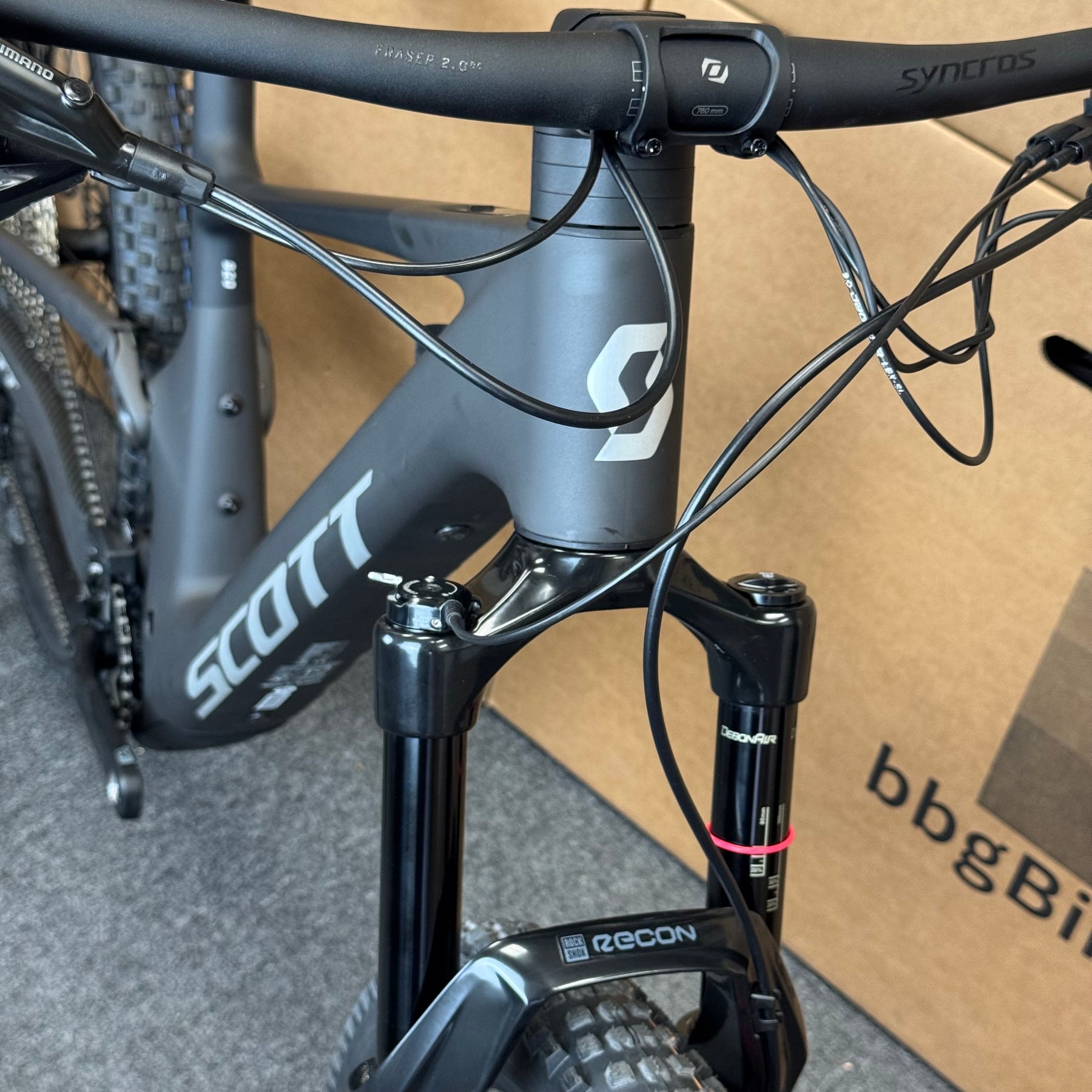

Fork	RockShox Recon Gold RL Solo Air 2-Modes / 15x110mm axle / tapered steerer 42mm offset / Reb. Adj. / Lockout / 140mm travel
Rear Shock	X-Fusion NUDE 5 RLX Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Reb. Adj. Travel 130-90-Lockout / T165X45mm
Remote System	SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes
E.Drive System	TQ HPR50

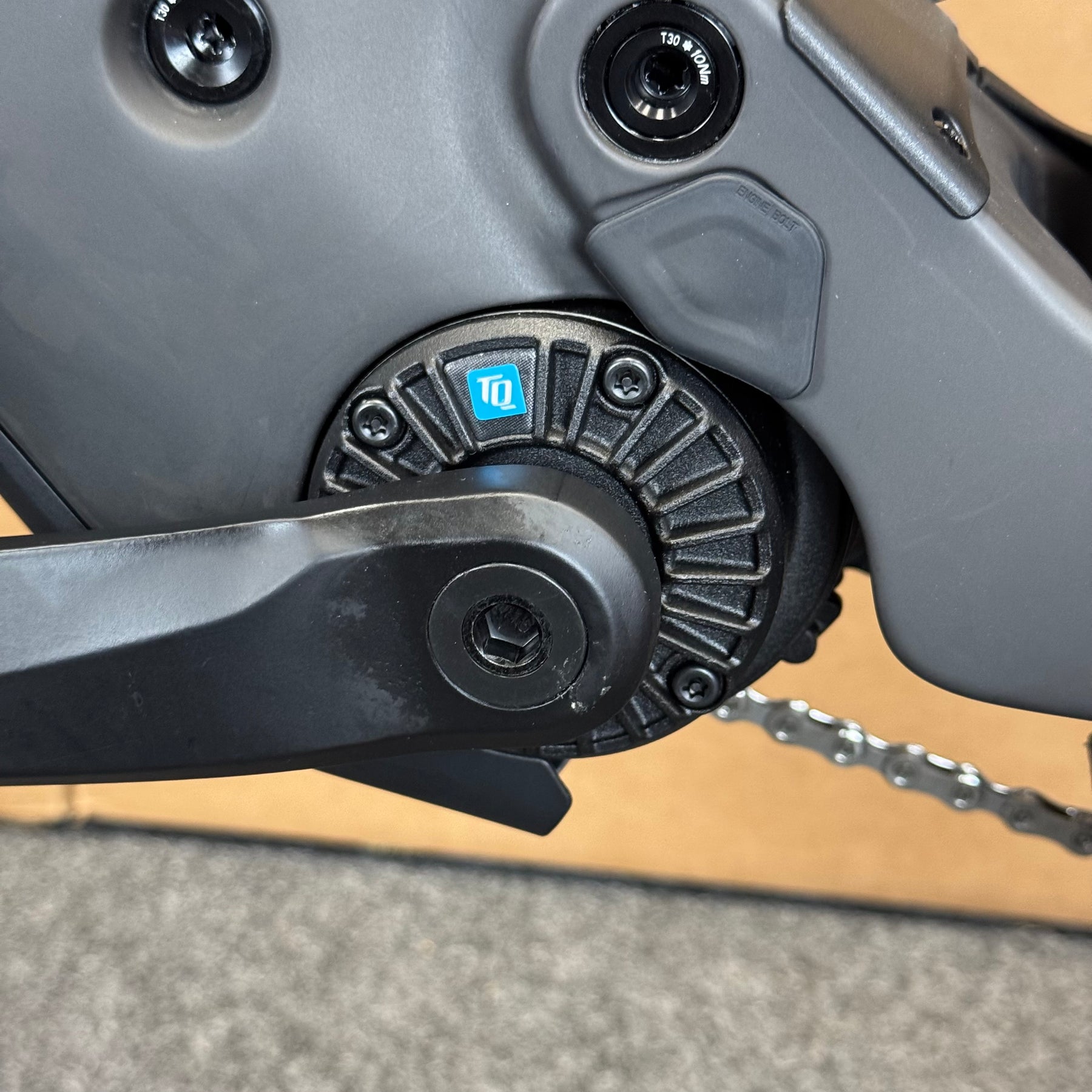

Drive Unit	TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery	TQ Internal 360Wh

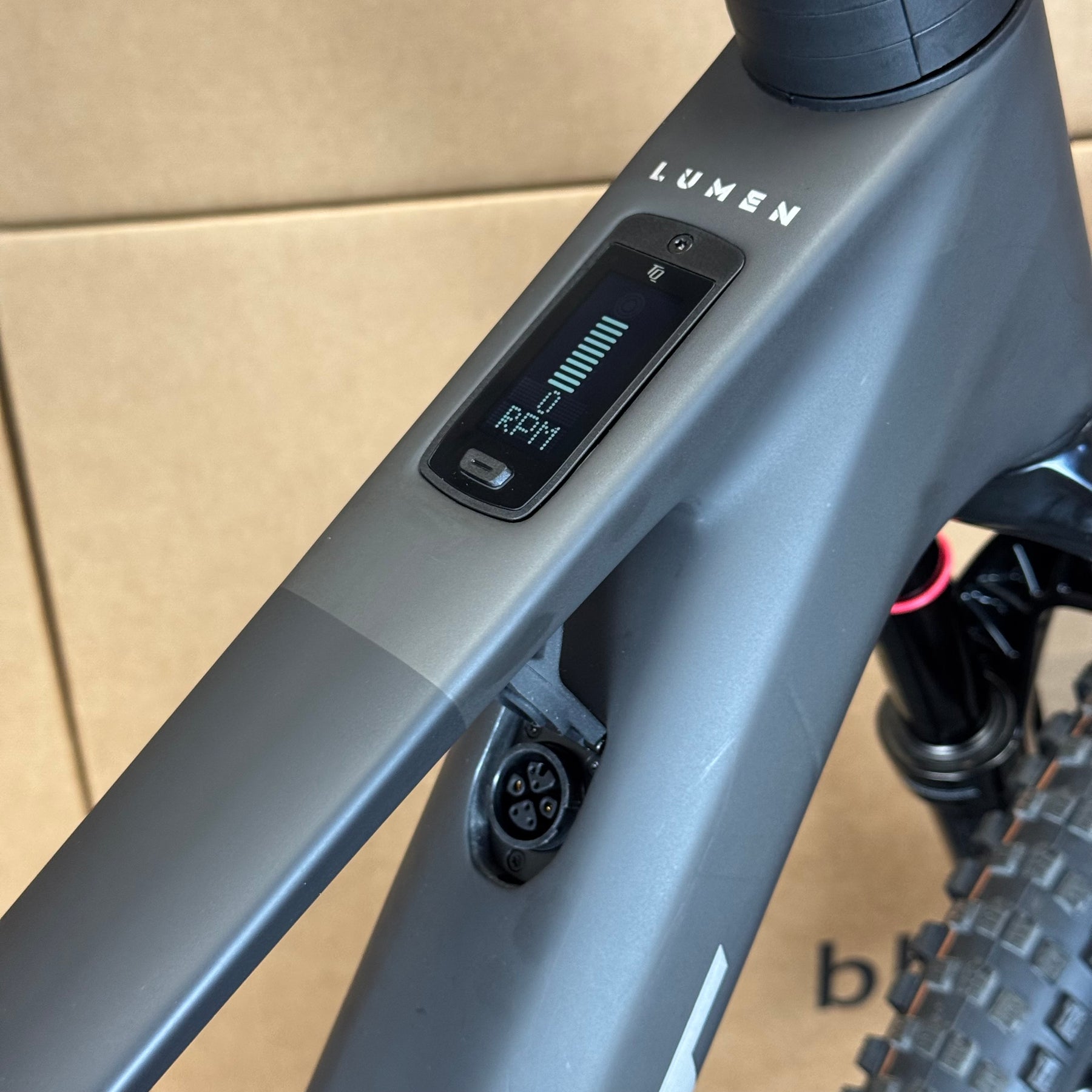

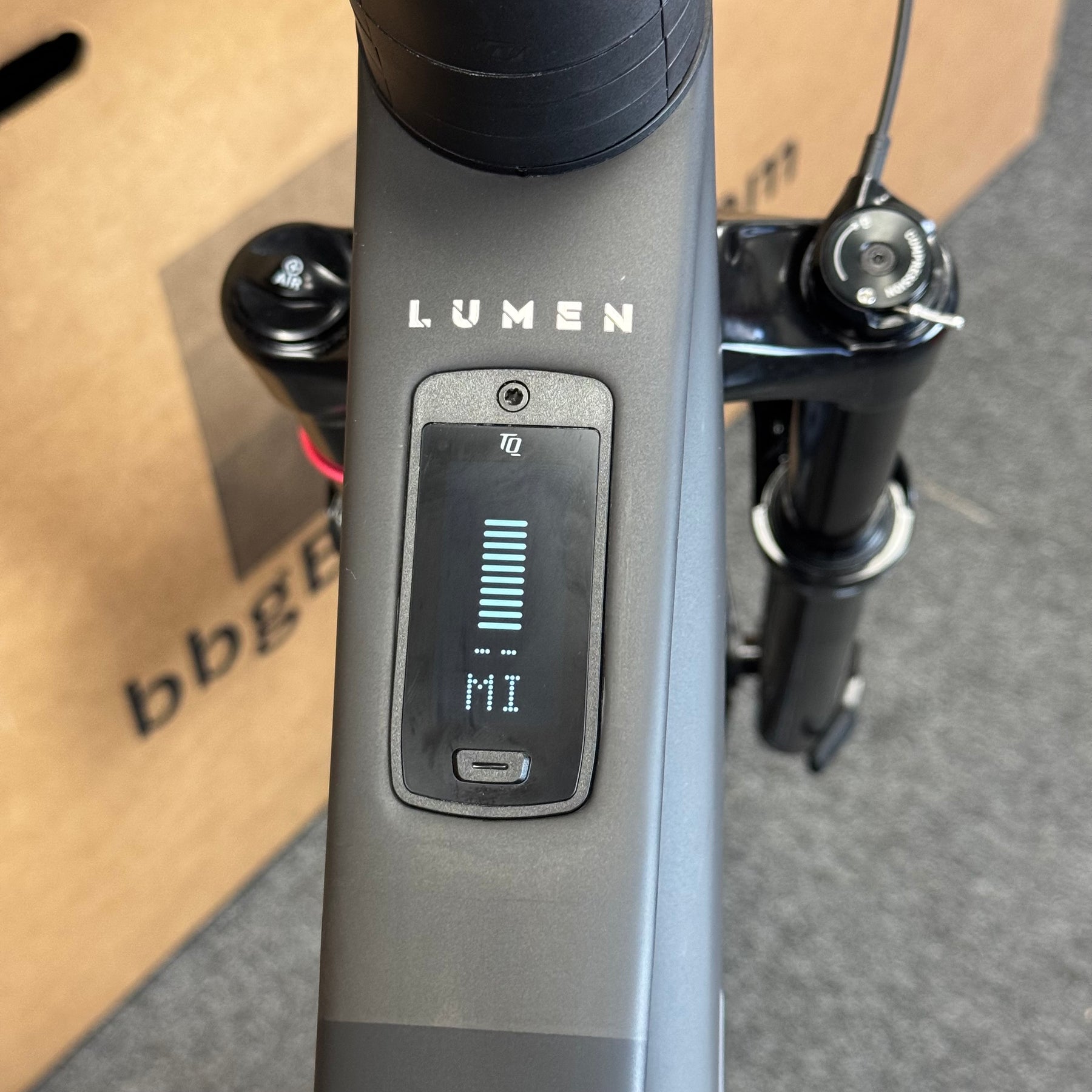

Display	TQ HPR Bluetooth / ANT+ / Dedicated Smartphone app
Charger	TQ 100-240V-4A

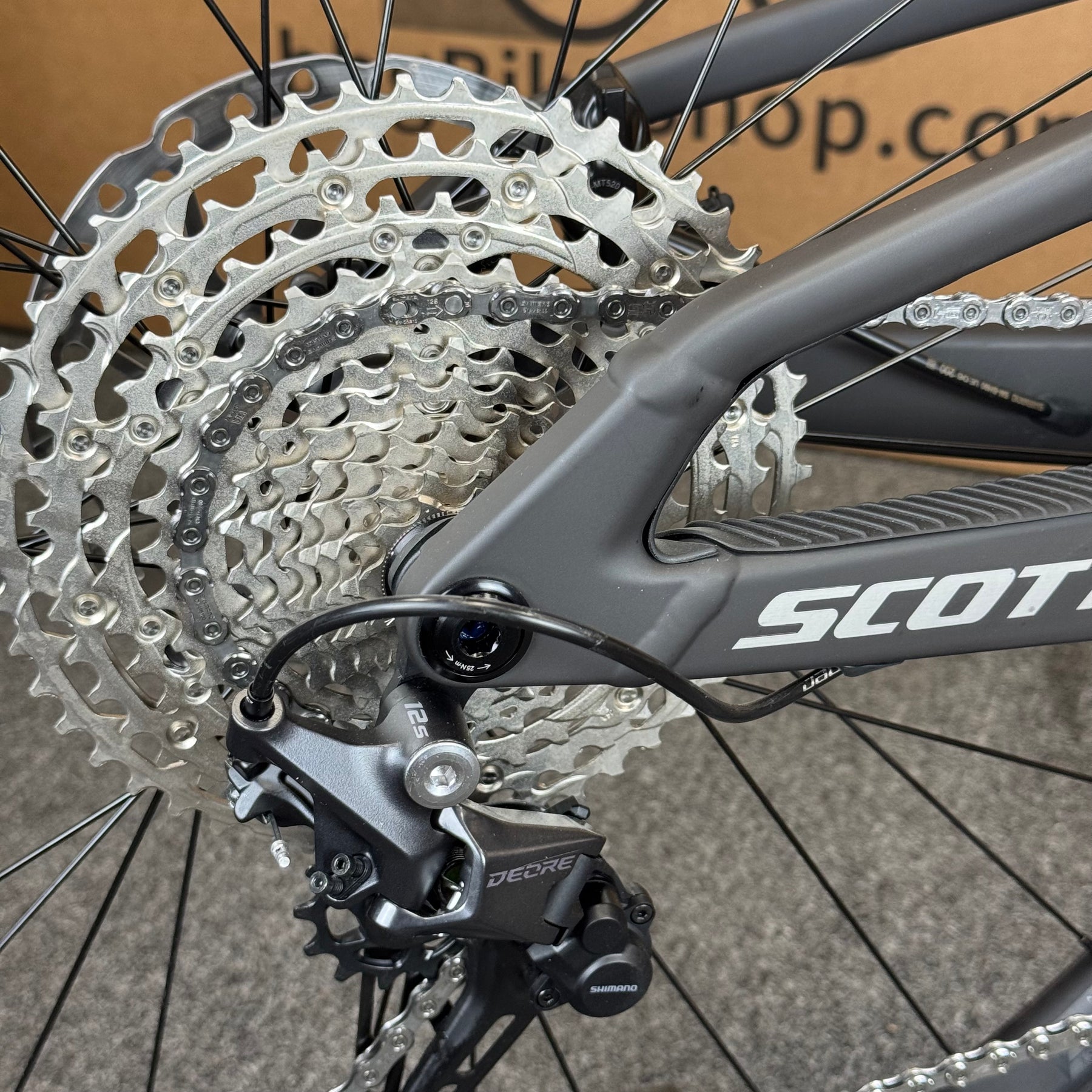

Rear Derailleur	Shimano Deore RD-M6100 SGS Shadow Plus / 12 Speed
Shifters	Shimano Deore SL-M6100-IR / Rapidfire Plus
Crankset	FSA Alloy
Chainguide	ethirteen / espec Slider
Chainring	SCOTT custom spider / FSA 12Speed 34T chainring
Chain	Shimano CN-M6100
Cassette	Shimano CS-M6100 / 10-51
Brakes	Shimano MT520 4 Piston Disc
Rotor	Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm
Handlebar	Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm Syncros Performance XC lock-on grips
H'stem	Syncros DC 2.0 Syncros Cable Integration System 0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost	Syncros Duncan Dropper Post 2.0 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
Seat	Syncros Tofino 2.0 Regular CRMO rails
Headset	Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Hub (Front)	Formula CL-811 / 15x110mm
Hub (Rear)	Formula CL-148M / 12x148mm
Spokes	Stainless Black 15G / 1.8mm
Rims	Syncros X-30S / 32H / 30mm Tubeless ready
Front Tire	Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft
Rear Tire	Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Grip
Max. System Weight	128kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Description	The SCOTT Lumen 920 is a revolutionary electric mountain bike that redefines what's possible, starting with its impressively low weight of around 42lbs. Drawing from SCOTT's proven Spark 900 Cross-Country/Trail platform, this bike features 130mm of rear travel paired with a 140mm fork, providing the perfect balance between agility and capability on diverse terrains. The Lumen 920 seamlessly integrates the powerful yet quiet TQ HPR50 electric assistance system, enhancing the ride without sacrificing the lightweight, responsive feel that SCOTT bikes are known for. Built on a Carbon HMF main frame with alloy SST-CST construction, the Lumen 920 incorporates SCOTT's integrated suspension technology with flex pivot design and adjustable head angle for optimal customization. The RockShox Recon Gold RL Solo Air fork with 2-mode adjustment pairs perfectly with the X-Fusion NUDE 5 RLX Trunnion shock, delivering controlled performance across technical terrain while maintaining the bike's legendary lightweight DNA. The TQ Internal 360Wh battery provides ample range for extended adventures while maintaining the bike's sleek profile and balanced weight distribution. Combined with the reliable Shimano Deore 12-speed drivetrain and Syncros X-30S wheelset, this setup ensures smooth, precise shifting and dependable performance whether conquering steep climbs or flowing through winding descents. Perfect for riders seeking the ideal fusion of traditional mountain biking excitement and modern electric technology, the SCOTT Lumen 920 opens up new trails and pushes limits while making every ride more accessible and enjoyable. This electric mountain bike delivers the weight of a mountain bike with the power of electric assistance, ready to tackle any trail at any speed.
Key Feature	Frame - Carbon HMF Main Frame with Alloy SST-CST Construction Suspension - RockShox Recon Gold RL Fork (140mm) and X-Fusion NUDE 5 RLX Shock (130mm) Battery - TQ HPR50 with TQ Internal 360Wh Battery Drivetrain - Shimano Deore 12-Speed Wheelset - Syncros X-30S
Bike ID	9876543212082

		S	M	L	XL
A	head tube angle	65.5 °	65.5 °	65.5 °	65.5 °
B	head tube length	110.0 mm	110.0 mm	120.0 mm	135.0 mm
C	top tube horizontal	562.0 mm	589.0 mm	620.0 mm	645.0 mm
D	standover height	765.0 mm	767.0 mm	780.0 mm	800.0 mm
E	BB offset	-38.5 mm	-38.5 mm	-38.5 mm	-38.5 mm
F	BB height	338.5 mm	338.5 mm	338.5 mm	338.5 mm
G	wheel base	1,176.0 mm	1,206.0 mm	1,240.0 mm	1,270.0 mm
H	BB center to toptube center
I	BB center to top of seattube	415.0 mm	440.0 mm	480.0 mm	520.0 mm
J	seat angle	76.8 °	77.0 °	77.2 °	77.5 °
K	chainstay	450.0 mm	450.0 mm	450.0 mm	450.0 mm
L	reach	416.0 mm	446.0 mm	476.0 mm	501.0 mm
M	stack	615.0 mm	615.0 mm	625.0 mm	638.0 mm
N	stem length	50.0 mm	60.0 mm	70.0 mm	70.0 mm
0	trail	126.0 mm	126.0 mm	126.0 mm	126.0 mm
P	Fork length	540.0 mm	540.0 mm	540.0 mm	540.0 mm
Q	Maximum Seatpost Insertion	150.0 mm	175.0 mm	215.0 mm	255.0 mm
R	Crank Length	170.0 mm	170.0 mm	175.0 mm	175.0 mm
